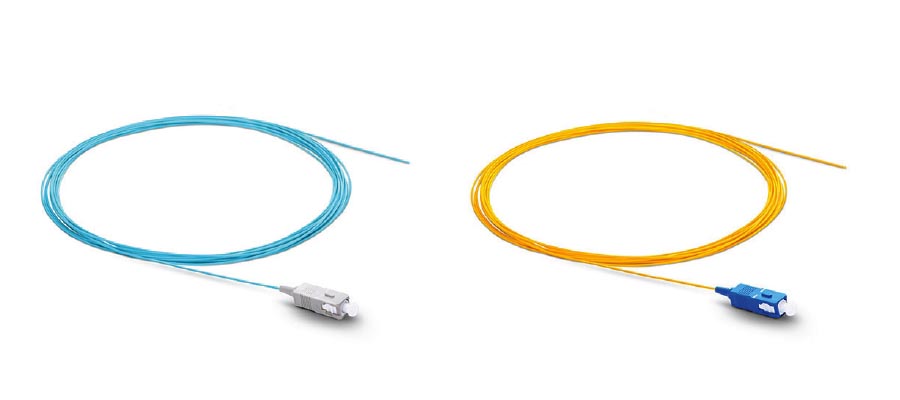

OPTICAL FIBER PIGTAIL (SINGLE/MULTI MODE)
DESCRIPTION:
The pigtails provide 900μm buffered fiber for ease of handling in fiber management such as panels, splice cassettes and wall boxes. The pigtails are terminated with physical contact (single mode & multimode) and angled physical contact (single mode) zirconia ferrule connectors which are manufactured with precision factory mounting and polishing techniques which helps assure high transmission quality
SPECIFICATION:
| Standards | IEC, EIA/TIA, Telcordia GR-326 Standards |
| Strength Member | Aramid Yarn |
| Cable Diameter | 0.9mm / 2mm / 3mm |
| Fiber Type | OS2, OM3, OM4 , OM5 |
| Jacket Material | LSZH |
| Insertion loss | ≤ 0.3dB |
| Return loss | ≥ 55 dB |
| Minimum Bend Radius Install | 3.0cm |
| Long Term Bend Radius | 2.0cm |
| Operating Temperature | – 40°C to +85°C |
| Storage Temperature | 50°C to +85°C |
| Cable Color | Aqua , Purple, Yellow or 12 X Colours |
| Connector Type | SC, FC, ST, LC |
| Length | 1m / 2m / 3m |
| Performance | Factory Tested |
| Compliant | RoHS & ISO |
| Application | 1G -40G Applicaons |
ORDER INFORMATION:
| Part Number | Description |
| FOSXXYY-TY | CABCOMM Fiber Optic Pigtail YY – XX TY – LSZH |
